[Moderator's note: the author provided more details for the captions for the eight illustrations, which have been added to the several posts above.]

rdewers

Yes, that is the factory VHF antenna. It clears the bimini, whether the bimini is up or down.

rdewers

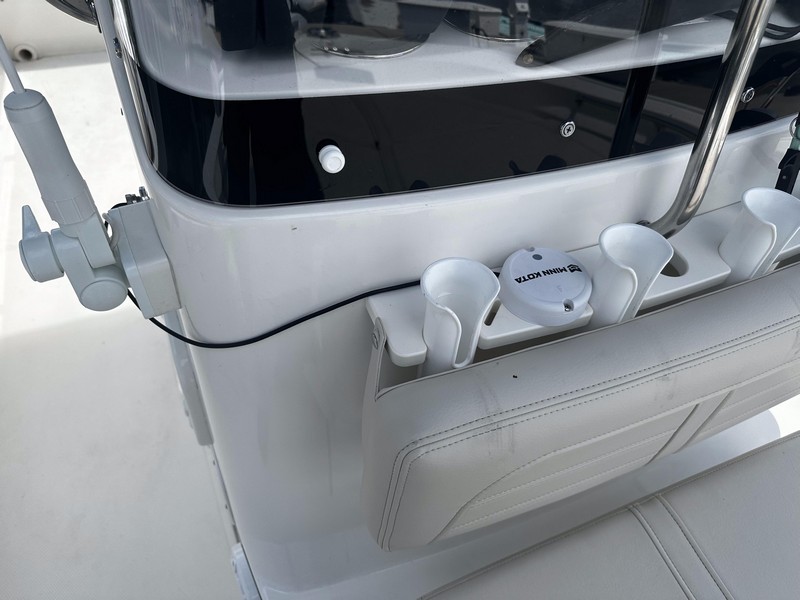

: FIg. 6. A Minn Kota heading sensor is installed on the rod holders forward of the center console. The cable runs to the same opening as used by VHF antenna on the starboard side of the console.; 20240324_170330769_iOS.jpg (78.91 KiB) Viewed 16518 times

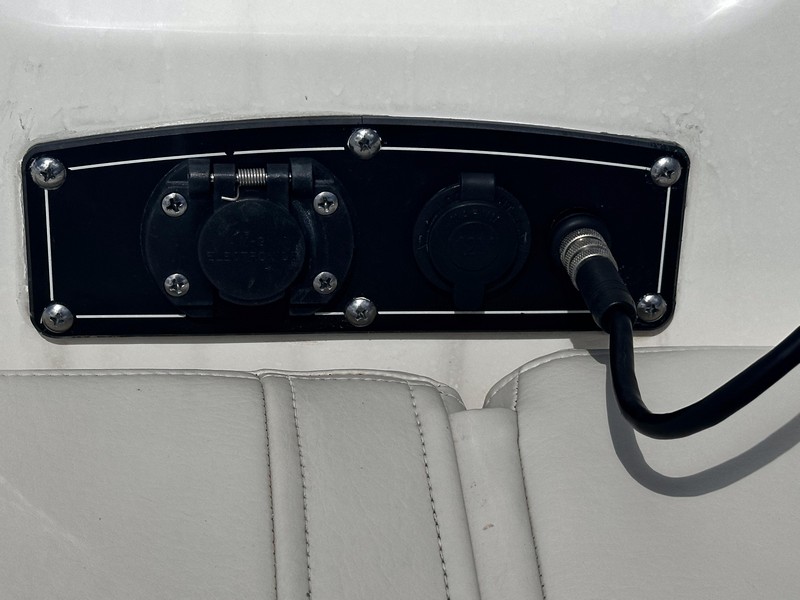

: Fig. 7. The OEM electrical plate at the bow, below the anchor cleat is shown. The trolling motor plugs into the receptacle on the left. I don't recall if the power connector was OEM or I had to replace the original with a connector specific to the Minn-Kota motor. The smaller connector on right is also for the trolling motor.; 20240324_170427520_iOS.jpg (76.68 KiB) Viewed 16518 times

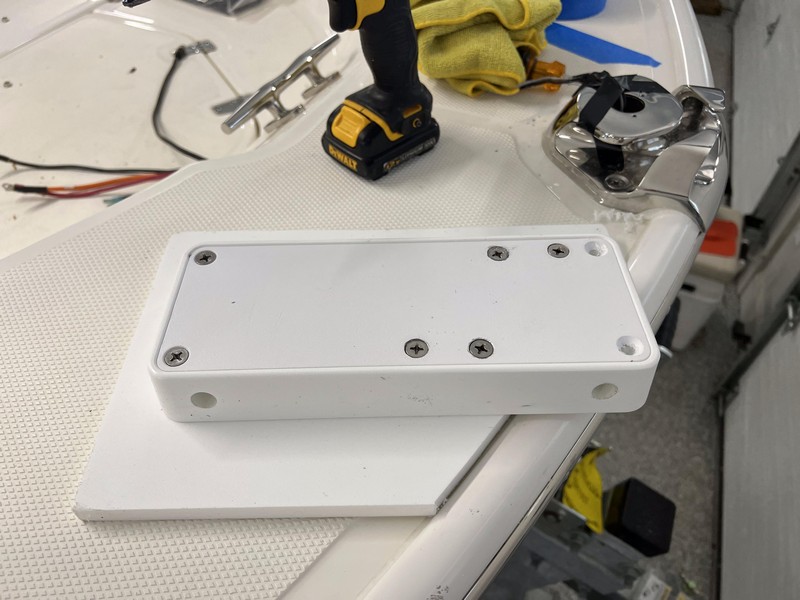

: Fig. 8. The heavy-duty version of Minn Kota's quick release plate is mounted atop of a piece of KING StaBoard so that it will clear the white rub-rail.; 2022-05-17 14.44.01.jpg (94.04 KiB) Viewed 16518 times

rdewers

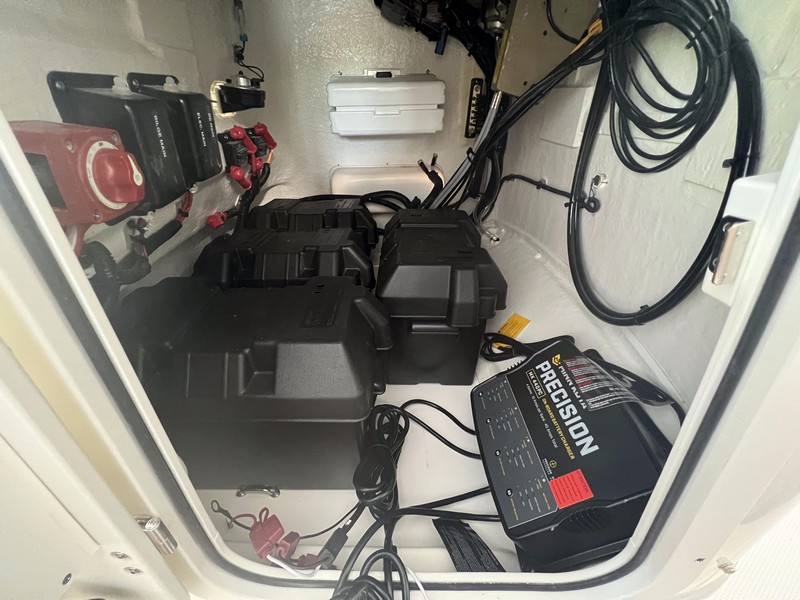

: Fig. 4. Inside the center console there are four batteries, a battery charger, a new On-Off switch (not shown), and a 60-Ampere circuit breaker (not shown) for the trolling motor. The placement of the batteries is shown, but no wiring has been run to them yet..; 2022-05-19 14.18.54.jpg (116.26 KiB) Viewed 16518 times

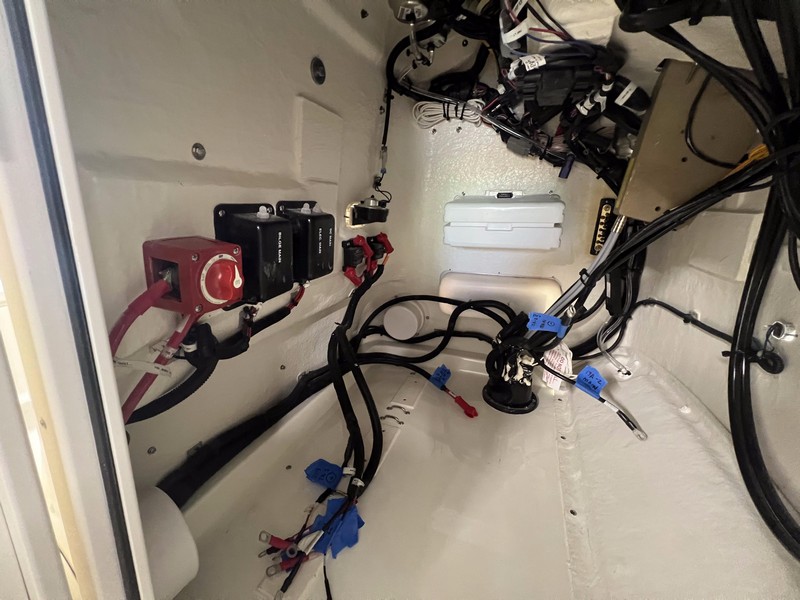

: Fig. 5. All wiring runs to the black boot that enters into the cockpit deck, seen at the center rear. To add wiring to the black boot many zip ties have to be cut off, and the boot extended upward. The white tags attach to small diameter ropes ( to the right of the boot) that are used to pull in new wiring to bow and stern through the plastic conduit.; 2022-05-20 09.49.07.jpg (108.04 KiB) Viewed 16518 times

rdewers

2022-05-19 11.52.53.jpg 20240324_165928506_iOS.jpg 20240324_165738948_iOS.jpg I am new here. I got got lots of great advice from your posts. I'd like to share some picturess and learnings from the setup of my new 2022 Montauk 190. I installed a Minn Kota Riptide (saltwater) Terrova 80lb thrust 24v ...

rdewers

I apologize for replying a couple of years late. Many thanks to all of you for your advice. I ended up installing a Humminbird Solix 12. It fit very nicely, but it is about the biggest display that will fit. If I ever decide to upgrade I will likely have to cover the hole with a plate and surface mo...

rdewers

I am trying to figure out the location for a SONAR display and the size of the display for use on a 2022 190 MONTAUK. I have been unable to find any pictures [how a SONAR display is located on a 2022 MONTAUK 190]. From looking inside the console, it appears there is a maximum of 8-inches height and ...
